An example of individual modeling with Phoenix model

This example illustrates how a dataset can be fitted to a two-compartment model with first-order absorption in the pharmacokinetic model library using either the WinNonlin PK Model or a Phoenix Model GUI.

The Phoenix WinNonlin Model Exp1 data is used, which is a dataset fit to PK model 13 in the pharma­cokinetic model library. Four constants are required for model 13: the stripping dose associated with the parameter estimates, the number of doses, the dose, and the time of dosing.

Note:The completed project (IndivPK.phxproj) is available for reference in …\Examples\NLME.

Set up the WinNonlin classic PK model object

  1. Create a new project called IndivPK.

  2. Import the datasets IndivPK11.xls and IndivPK111_Dose.xls from …\Exam­ples\NLME\Supporting files.

  3. In the File Import Wizard dialog, click next_arrow_7.png to move from the IndivPK11 dataset to IndivPK11 and click Finish.

  4. Right-click the IndivPK11 worksheet and select Send To > WNL5 Classic Modeling > PK Model.

  5. Rename the object as WNL Model.

  6. Use the option buttons in the Main Mappings panel to map the data types to the following contexts:
    Time to the Time context.
    Conc to the Concentration context.

  7. Click Dosing in the Setup tab.

  8. Use the mouse pointer to drag the IndivPK11_Dose worksheet from the Data folder to the Main Mappings panel. Data types should automatically map as follows:
    Time to the Time context.
    Dose to the Dose context.

  9. In the Model Selection tab, scroll down the table of models and check the box for model 11.

    10. Indiv_pk_model_select.png

  10. Select the Weighting/Dosing Options tab.

  11. In Weighting menu select 1/Y.

    12. Indiv_pk_weighting.png

  12. Click execute_button_84.png to execute the object.

Create the Phoenix Model

  1. Right-click the IndivPK11 worksheet and select Send To > Phoenix Modeling > Phoenix Model.

  2. Rename the object as Phoenix Model.

  3. In the Structure tab, uncheck the Population box.

  4. Click the Set WNL Model button.
    The contents of the Structure tab changes. The first of the two untitled menus allows users to select a PK model, and the second allows users to select a PD model.

  5. In the first untitled menu, select Model 11 (11 2cp micro xvas).

    6. Indiv_pk_set_wnl.png

  6. Make sure the second untitled menu is clear and click Apply to set the WinNonlin model.

    7. Indiv_pk11_structure_tab.png

  7. Use the option buttons in the Main Mappings panel to map the data types to the following con­texts:
    Time to the Time context.
    Conc to the CObs context.

  8. Click Dosing in the Setup tab.

  9. Use the mouse pointer to drag the IndivPK11_Dose worksheet from the Data folder to the Main Mappings panel.

  10. Use the option buttons in the Dosing Mappings panel to map the data types to the following con­texts:
    Dose to the Aa context.
    Time to the Time context.

  11. Click execute_button_85.png to execute the object.

Initial Estimates configuration

The Initial Estimates tab can be used to find the best initial estimates for different parameters.

  1. Select the Initial Estimates tab.

    Adjust the portion of the plot to view using the Start Time and Duration options.

  2. For this example, set the Duration to 24 either using the slider Slider_4.png or typing the value in the field next to the slider.

    3. Indiv_pk_initial_est.png

  3. Enter different values for the fixed effect parameters, as shown in the table below, and see how each adjustment affects the results on the XY plot. Use the slider Slider_5.png or typing the value in the field next to the slider.

    4. Parameter

    Value

    tvKa

    2

    tvV

    0.2

    tvKe

    0.1

    tvK12

    1

    tvK21

    1






  4. Click accept_value_arrow_6.png beside each parameter to copy the new estimate to the Initial estimate field.

    For more information on using the Initial Estimates, see the “Initial Estimates tab” description.

  5. Click execute_button_86.png to execute the object.

Comparing the results

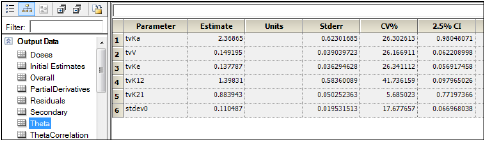

  1. Open the Theta worksheet in the Results tab for the Phoenix Model.

    2. indiv_pk_thetas.png

  2. Open Final Parameters worksheet in the Results tab for WNL Model.


The names of parameters in Phoenix Model have the following equivalents in WinNonlin PK Model.

Phoenix Model

WinNonlin PK Model

tvKa

K01

tvV

V1_F

tvKe

K10

tvK12

K12

tvK21

K21

Compare the results of estimated fixed effects. As one can see, the estimates in these models are close but not equal due to different method of model fitting.

This concludes the individual modeling example.
