PsN integration settings

Select File > Settings.

Select Software Integration > PsN in the left list.

Check the Enable Pirana support for PsN box to enable editing of the settings.

Enter the parameter settings to use by default when executing PsN.

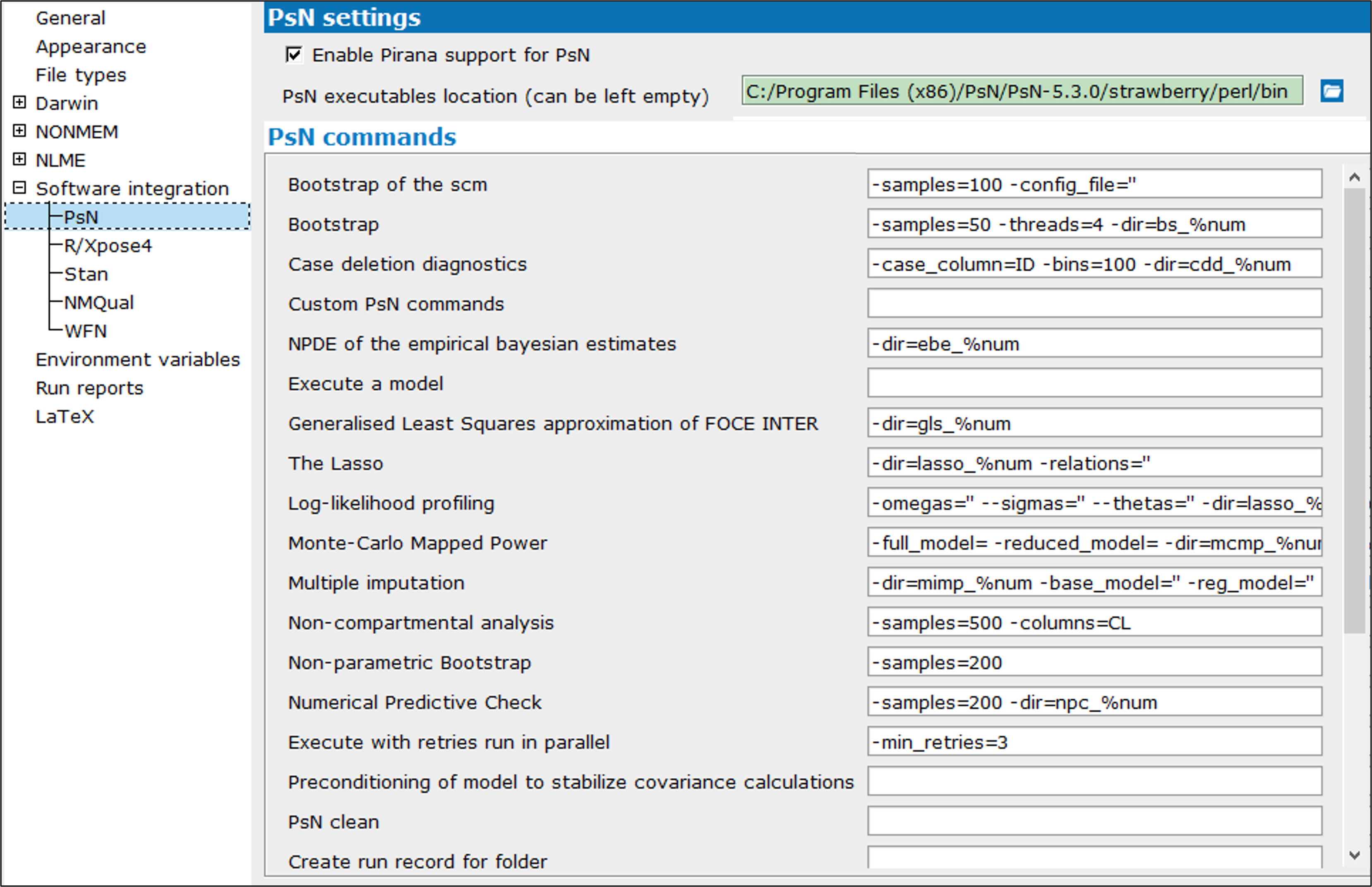

For example, with the Bootstrap parameters set as shown in the previous image, if you selected a run (e.g., run1) and chose > Model diagnostics > bootstrap, the default in the PsN command line field would be:

         bootstrap -samples=50 -threads=4 -dir=bs_run1 run1.mod

Refer to the PsN documentation for details on specific parameters.
