Extensions integration settings

Most extensions settings are not required to work with Pirana. Many program locations are only used to create easy links to the software from within Pirana.

The following are important to set correctly to work with Pirana easily:

R location: Pirana uses R and Xpose4 to generate graphs.

Location of R GUI (if available).

Spreadsheet location (i.e., Excel, Numeric, etc.): Enables viewing of CSV files.

Code/text editor: This editor is used to edit models or scripts.

PDF file viewer: Enables viewing of the many graphics that are created as PDF files.

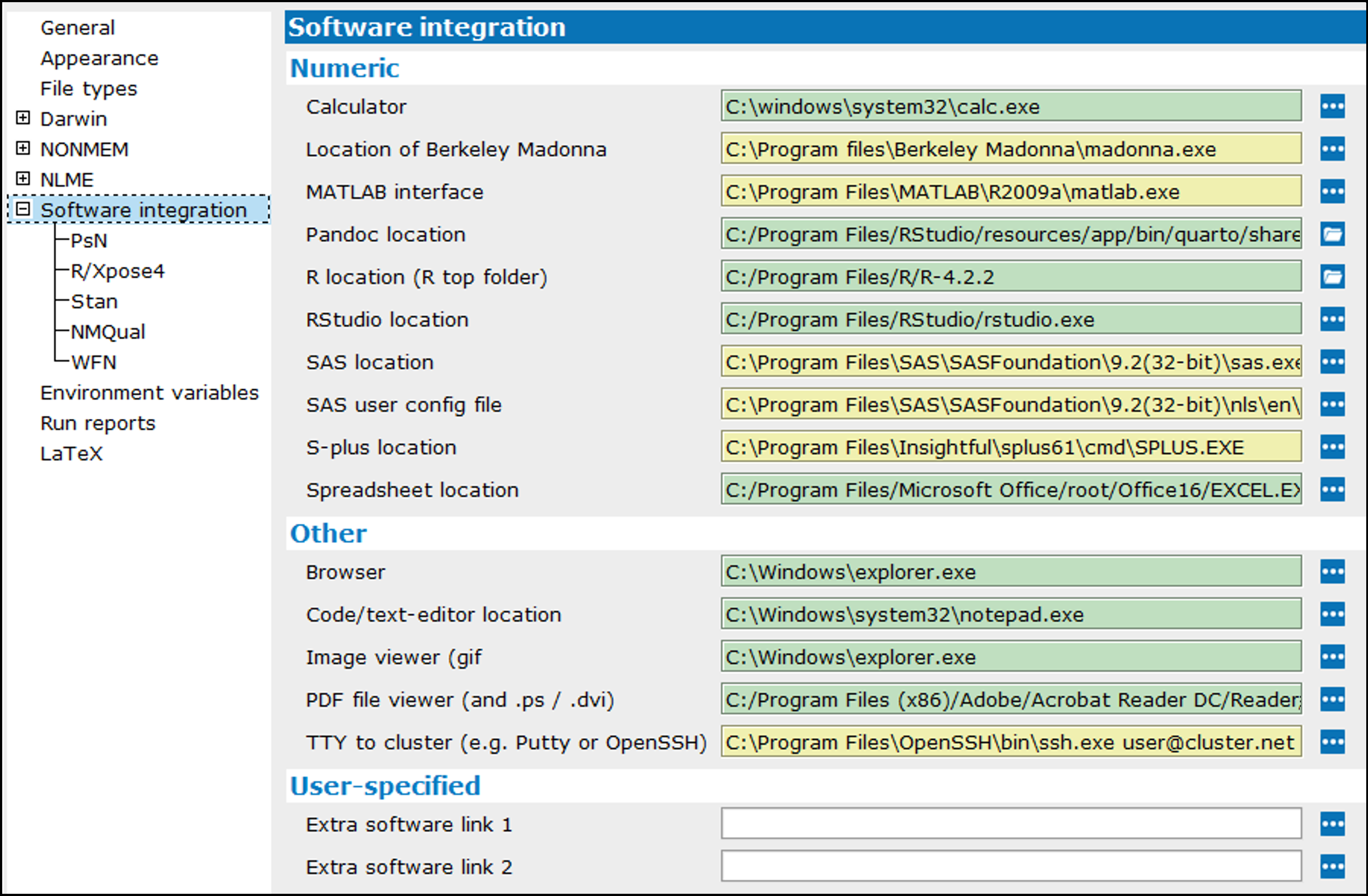

Select File > Settings.

Select Software Integration in the left list.

Enter the path to the appropriate executable or configuration file for the extension.

Or

Click the to navigate and select the file.

A couple of options require specification of a folder. Use the to navigate and select the folder instead of entering the path.

Note that, for TTY to cluster, the path to the executable and an email address to which results can be sent should be entered.
