View and compare parameter estimates

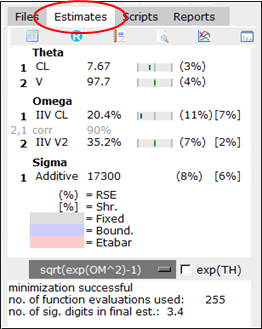

A list of parameter estimates is available in the Estimates tab in the right section of the Pirana window.

ParameterEstSingleRun

Information is communicated through brackets and color.

RSE for parameters is shown in round brackets ( )

Shrinkage for the random effects is shown in square brackets [ ]

Parameters where the final gradients were zero have red text (NONMEM models only*)

Parameters were fixed have a gray background

Parameters where boundaries were encountered have a blue background

Parameters where the mean of eta-distribution was significantly different from zero include the etabar with a red background

*NLME does not generate gradient information so text will not be colored.

Using the Estimates tab toolbar, you can easily access the following tools and functionality:

icon_paramestimates : Display the Parameter Estimates dialog, which gives a more detailed list of estimates.

icon_R : Export the estimates using R.

icon_genreport : Generate report.

icon_shownmoutput : View the NM output file.

icon_datainspector : Open dataset/output files in DataInspector

icon_viewmatrix : View matrix. Select the matrix type from the pop-up menu (see “Matrices” for details).

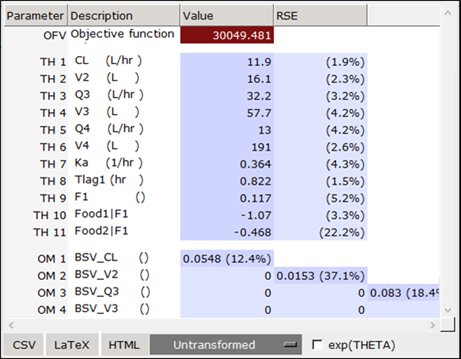

The more detailed Parameter Estimates dialog can be accessed using the any of the following methods:

Click icon_paramestimates in the Pirana toolbar.

Click icon_paramestimates in the Estimates tab toolbar.

Select Results > Show/compare parameter estimates.

Select View > Show parameter estimates.

Right-click a selected model in the model overview list and choose Model > Parameter estimates from the menu.

ParameterEstSingleRunDetails

If multiple models/runs are selected when the Parameter Estimates dialog is opened, the parameter estimates for all selected runs are presented, side-by-side, facilitating comparison.

ParameterEstimatesMultipleRuns

The OMEGA matrix contains the variances and covariances of the random effects parameters. Each element of the OMEGA matrix corresponds to the covariance or variance between different random effects parameters.

The diagonal elements of the OMEGA matrix represent the variances of the random effects parameters. These variances indicate the spread or variability of the random effects across the population. The off-diagonal elements of the OMEGA matrix represent the covariances between different random effects parameters. Covariances indicate the extent to which two random effects parameters are related or correlated.

Interpreting the exact meaning of specific elements in the OMEGA matrix can be challenging and highly dependent on the model structure, the parameters being modeled, and the context of the study. It often requires careful consideration and exploration of the estimated parameters and their covariance structure to fully understand the relationships between the random effects parameters.

Convert results into CSV format, LaTeX, or HTML for reports or further analysis using the buttons along the bottom.

ParameterEstButtons

The pull-down menu offers different choices for transforming the variances. Options include Untransformed, sqrt(OM^2), and sqrt(exp(OM^2)-1).

Check the exp(THETA) box to back-transform thetas that have been log-transformed in model code.

Pirana will automatically back-transform when the parameter description includes the text “[log]”, e.g.,

     #THETA
     (0.,1.6,4.) ;KA [log]

See “Calculation Rules” for more details on transformation calculations.

To convert the displayed results into CSV format, LaTeX, or HTML for reports or further analysis, use the buttons along the bottom of the Parameter Estimates dialog.
